6 Channel Slip Ring for 365 ℉with Flange

  • 1
  • 2
  • 3

Current Rating : 2A

Model Number : PSR-T12S-10

Channels : 6 Channels

Brand Name : Panlink

Protection Degree : IP54

MOQ : 1

Delivery Time : 4 Weeks

Rotating Speed : 300rpm

Payment Terms : T/T

Housing Material : Aluminum Alloy

Price : Negotiable

Voltage Rating : 48VDC

Certification : ISO 9001: 2015, CE

Insulation Resistance : Max 200MΩ @ 500VDC

Supply Ability : 40 Million a Year

Operating Temperature : -40℉ to +356℉ (-40℃ to +180℃)

Place of Origin : China

Packaging Details : Carton Box, EPE Foam, Wooden Box(For Large Goods)

Contact Now

PSR-F15-6D
6 Channel Slip Ring for 365 ℉ with Flange

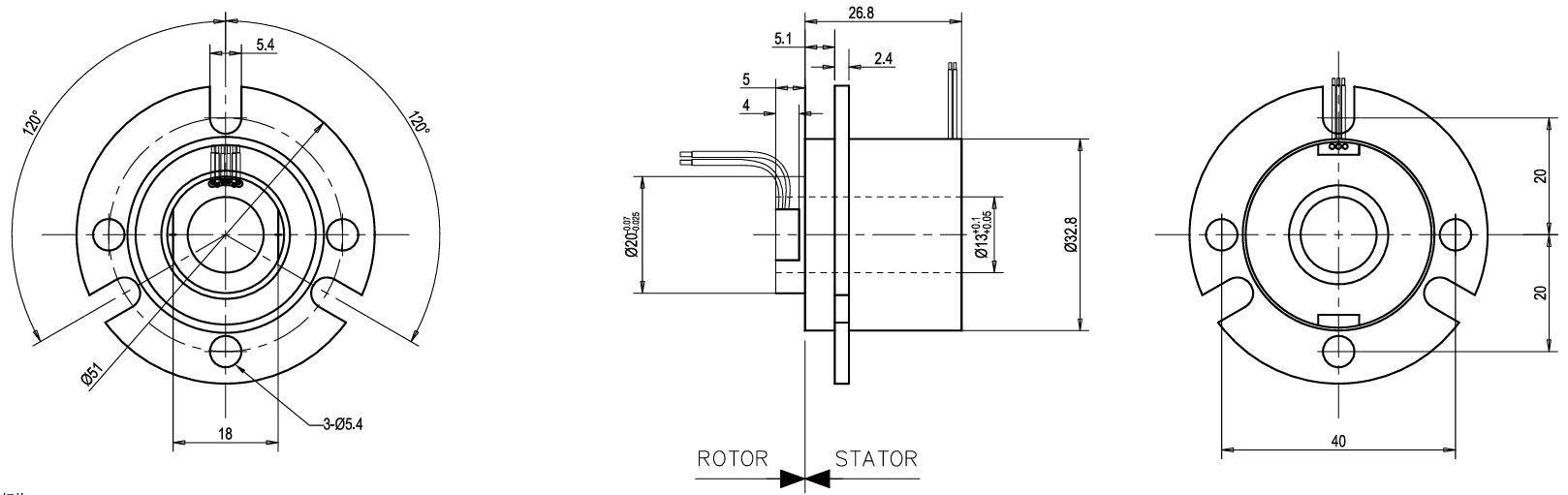

Drawings (Dimensions in millimeters)

6 Channel Slip Ring for 365 ℉with Flange

Specification
Circuits 6 for Signal Transmission
Electrical Specifications
Voltage Rating 48VDC
Current Rating 2A
Insulation Resistance Max 200MΩ @ 500VDC
Dielectric Noise 250VAC @ 50Hz, 60s
Electric Noise Max 10mΩ
Lead Cable AWG#26 Teflon Wire
Mechanical Specifications
Rotating Speed 300rpm
Operating Temperature -4℉ to +356℉ (-20℃ to +180℃)
Storage Temperature -13℉ to +374℉ (-25℃ to +190℃)
Operating Humidity 0~95%RH
Torque max. 0.1 N•m
Contact Material Precious Metal
Housing Material Aluminum Alloy
Protection Degree IP54 (higher or lower on request)

Quality 6 Channel Slip Ring for 365 ℉with Flange for sale

6 Channel Slip Ring for 365 ℉with Flange Images
